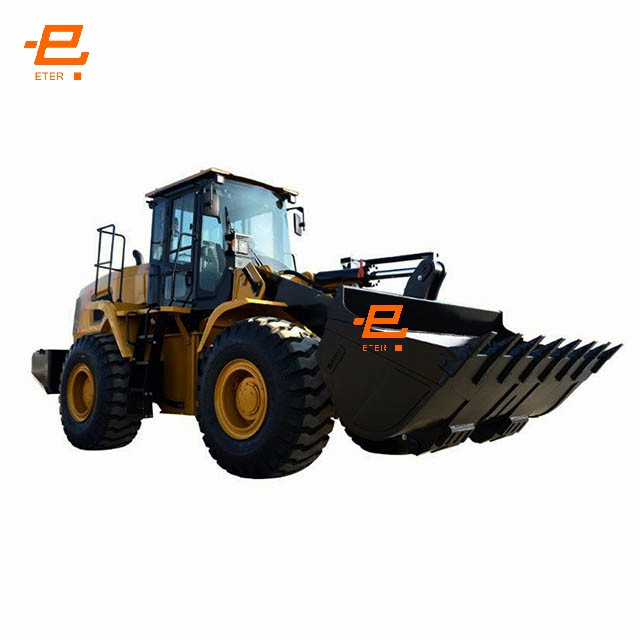

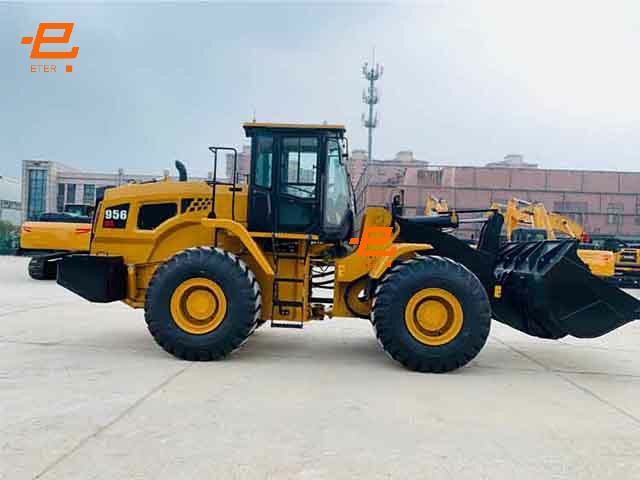

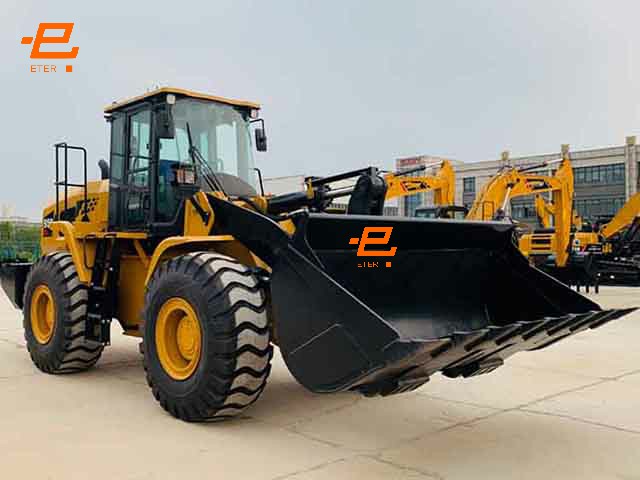

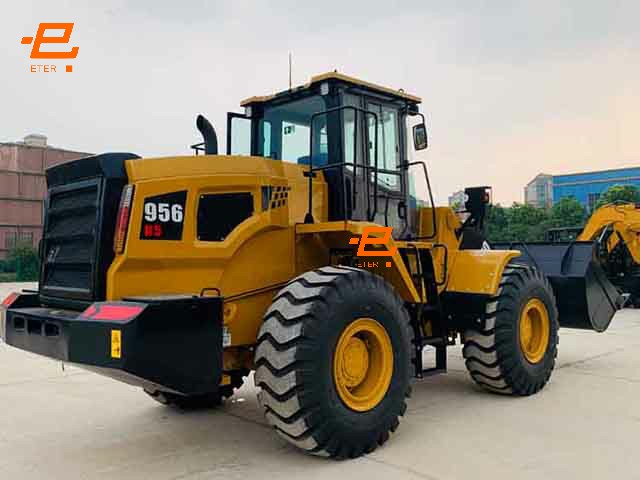

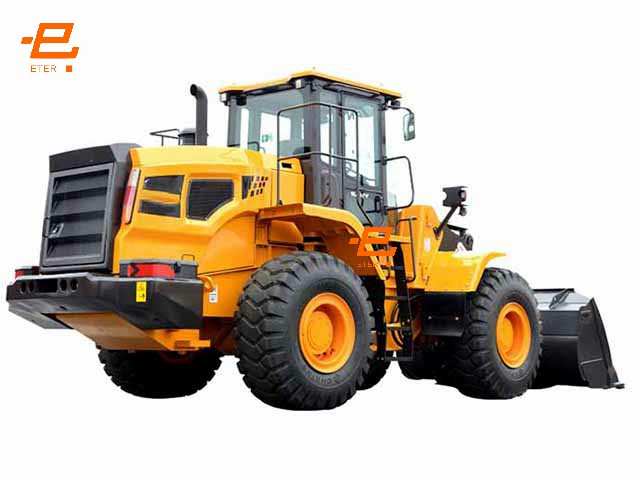

Used SANY SYl956 Wheel Loader
We're here to help: Easy ways to get the answers you need.
Specifications
|
Basic |
Operating Weight |
17100±200kg |
|
|
Bucket Capacity (Std.) |
2.7-4.0m3 |
||
|
Max.Torque |
1000N·m |
||
|
Rated Load |
5000kg |
||
|
Engine |
Model |
Cummins QSL8.9-C220-Ⅲ |
|
|
Rated power |
164/2200kW/rpm |
||
|
Emission Standard |
Tier 3 |
||
|
Performance |
Speed (Gear 1) |
7.1Km/h |
|
|
Max. Speed |
40Km/h |
||
|
Total Hydraulic Cycle Time |
10.5s |
||
|
Max. SAE |
175kN |
||
|
Tractive Force |
167kN |
||
|
Max. Articulation Angle |
40° |
||
|
Dumping Height at 45° Discharge |
3118mm |
||
|
Dumping Reach at 45° Discharge |
1140mm |
||
|
Tipping Load, Articulated at 40° |
10700kg |
||
|
Tipping Load, Straight |
12600kg |
||
|
Service Refill Capacities |
Fuel Tank |
300L |
|
|
Hyd Tank |
220L |
||
|
Drive Axle Oil (Front/Rear) |
26.2/26.2L |
||
|
Engine Coolant |
45L |
||
